DC power analyzer

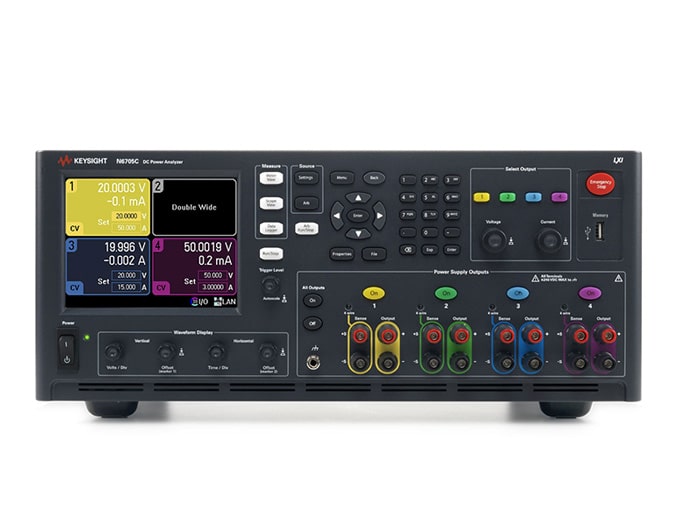

The Keysight Technologies, Inc. N6705 DC Power Analyzer represents an entirely new instrument
category for R&D engineers. Using the Keysight N6705 DC Power Analyzer, R&D
engineers can gain insights into the DUT’s power consumption in minutes without writing a single line of code. It provides an easy-to-use interface, with all sourcing or loading and measuring functions available from the front panel.
Main features:

  • Sources and measures DC voltage and current into your device under test

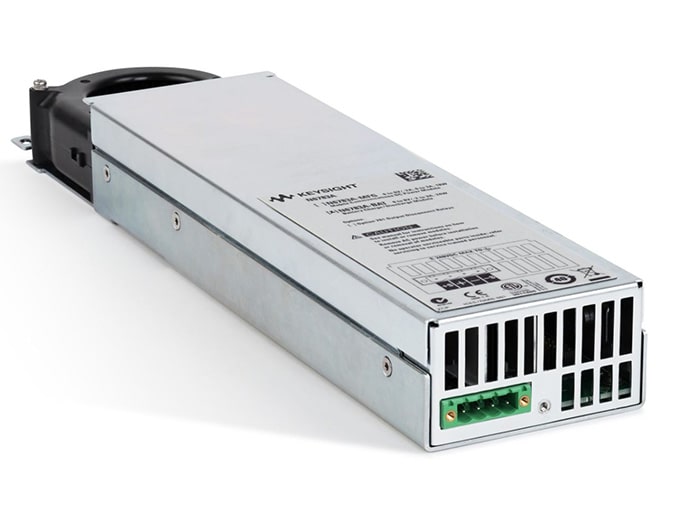

  • Combines one to four DC power supplies or Electronic loads, DMM, oscilloscope, arbitrary waveform
    generator, and data logger in one integrated instrument
  • Saves time – no programming required
  • Eliminates the need to gather and configure multiple instruments
  • Connect via GPIB, LAN, or USB
  • Fully compliant to LXI Class C specification

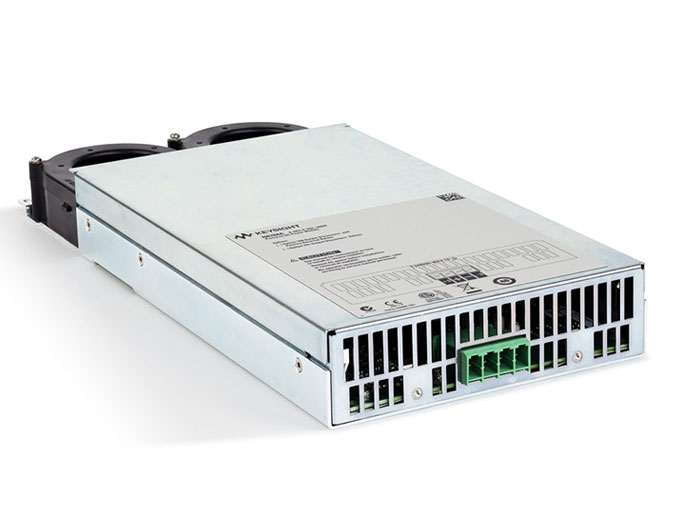

  • Electronic load module for power supply testing

Find out more about this product
